Advanced: Data Collection Flows

Data Collection Flows are multi-step conversational forms that allow you to gather structured information from customers directly within WhatsApp.

🏢 Business Owner's Guide (Non-Technical)​

Think of a Flow as a "Chat Form." Instead of sending a static link to a website, your bot asks questions one by one.

1. Enabling a Flow​

  1. Open any Bot Rule.
  2. Turn on the Enable Data Collection Flow toggle.
  3. You will see a JSON editor and a Flow Visualizer.

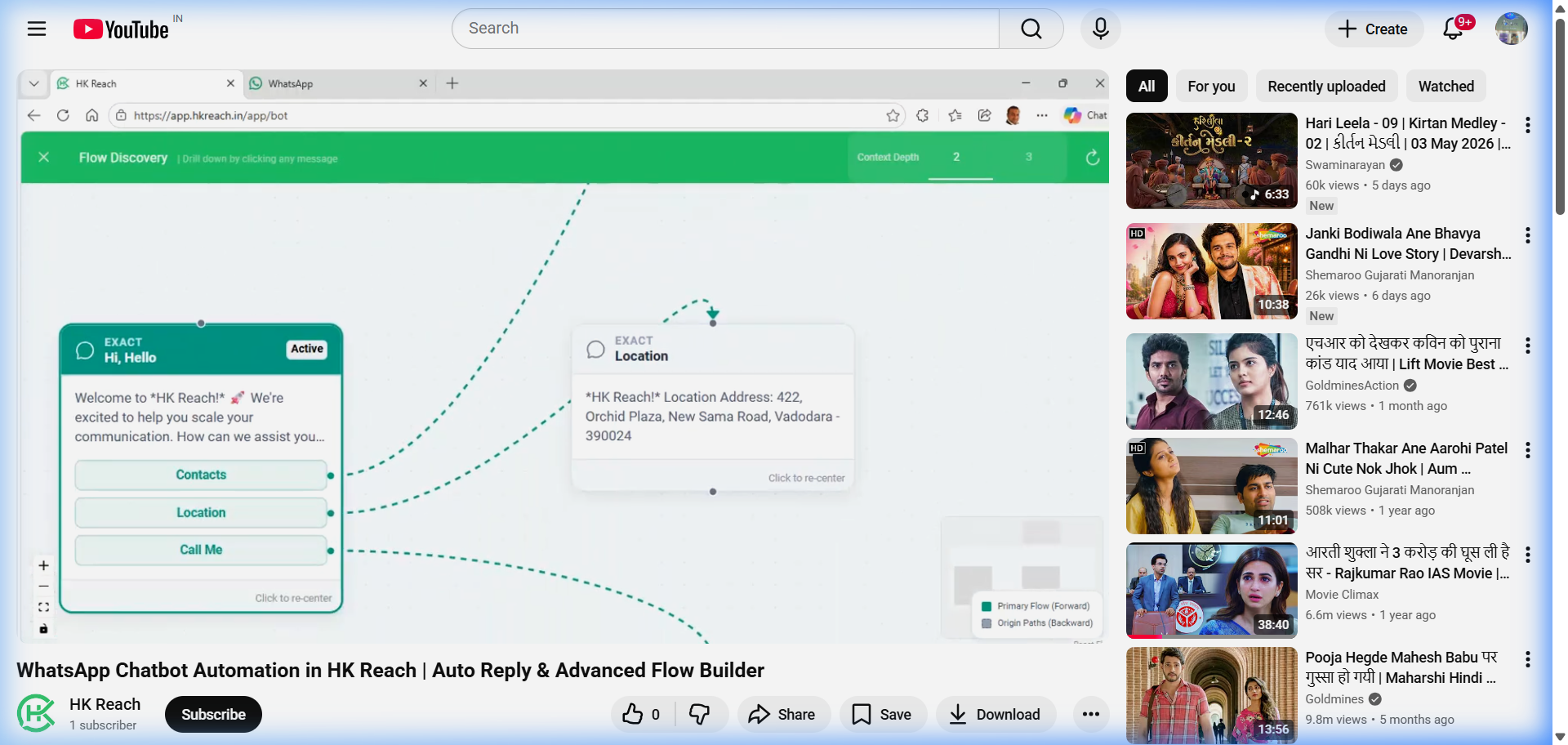

Flow Visualizer Discovery

2. What can you collect?​

You can ask for different types of information:

  • Text: General questions (e.g., "What is your name?").
  • Phone: Automatically validates that the user enters a valid phone number (at least 10 digits).
  • Image: Asks the user to upload a photo (e.g., a payment receipt). The bot will wait until a photo is received.
  • Selection: Provides the user with buttons (e.g., "Product A", "Product B").

3. Smart Routing (Branching)​

You can make your bot smart! For example:

  • If the user selects "Inquiry", send them to Step A.
  • If the user selects "Support", send them to Step B.

🛠️ Technical Administrator's Guide (Deep-Dive)​

Flows are defined by an array of JSON objects. Each object represents a "Step".

1. The Step Schema​

{
  "id": "ServiceType",
  "question": "Which service do you need?",
  "type": "Selection",
  "options": ["Sales", "Support", "Billing"],
  "nextMapping": {
    "Sales": "Step_Sales_Intro",
    "Support": "Step_Support_Ticket",
    "Billing": "Step_Billing_Query"
  },
  "next": "Step_Default_Exit"
}

2. Supported Step Types & Validation​

TypeBehaviorValidation Logic
TextCaptures any text response.None.
PhoneCleans input to digits.Must be at least 10 digits.
ImageCaptures media.Webhook must contain an image object. Automatically downloads and stores locally.
SelectionRenders buttons.Matches by Button Click, Index (e.g., "1"), or Keyword.

3. Advanced Branching Logic​

The engine uses a "Fallback Chain" for the next step:

  1. Priority 1: nextMapping: If the user makes a selection that exists in this dictionary, that target is chosen.
  2. Priority 2: next: If no mapping is found, the system moves to the ID specified in next.
  3. Priority 3: Completion: If both are missing or set to "COMPLETE", the flow ends.

4. Complex Flow Example: Payment Collection​

[
  { "id": "Name", "question": "What is your name?", "type": "Text", "next": "Amount" },
  { "id": "Amount", "question": "Enter the amount paid:", "type": "Text", "next": "Receipt" },
  { "id": "Receipt", "question": "Please upload a photo of your receipt:", "type": "Image", "next": "COMPLETE" }
]

5. Data Mapping & Lifecycle​

  • Session State: Stored in Contact.BotState as FLOW:{StepID}:{SubmissionID}.
  • Data Persistence: Answers are serialized into LeadSubmission.CollectedDataJson.
  • Flattening: During Excel export, each id from your JSON (e.g., ServiceType) becomes a dedicated column.

[!TIP] Use placeholders like {{ReferenceCode}} in your completion messages (in the Bot Rule editor) to give customers a trackable ID.
